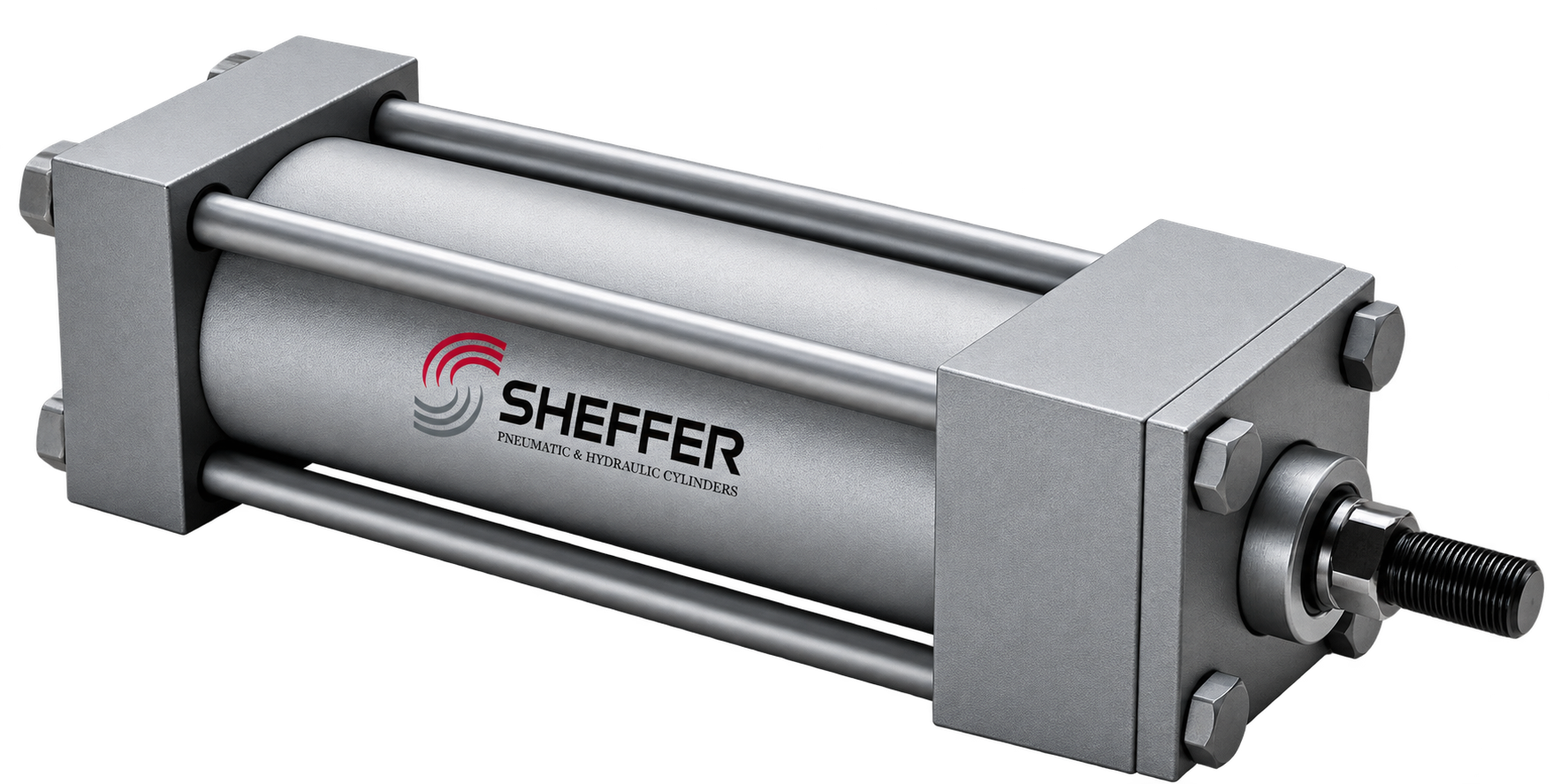

A Series Heavy Duty Pneumatic Cylinders

Dimensionally interchangeable with ANSI, NFPA, and JIC standards and rated for the toughest duty cycles, the A Series is Sheffer’s workhorse pneumatic cylinder — 1-1/8″ thru 14″ cataloged, up to 48″ custom, at 250 psi standard.

Download the A Series Brochure → Get an Express Quote

Built for Demanding Applications

The A Series Heavy Duty cylinder is Sheffer’s standard-bearer for industrial pneumatic actuation — a cataloged product line engineered to interchange with existing ANSI, NFPA, and JIC dimensional standards, so it drops into your design without a redesign. When the job calls for something beyond catalog, the same construction scales to custom bores, strokes, and pressures.

Bore

1-1/8″ – 14″

Cataloged standards · up to 48″ custom

Rating

250 psi

Standard · higher as custom

Mountings

20 Styles

Cataloged · specials available

Ordering Note: Because A Series dimensions follow ANSI, NFPA, and JIC interchange standards, existing mounting hardware and envelope drawings for equivalent cylinders typically carry over. Confirm bore, stroke, mounting style, and pressure with the factory before finalizing your order.

Construction That Holds Up

Every A Series cylinder is built around the same principle: reduce what has to be serviced in the field. Lubed-for-life sealing, hard chrome plated rods, and studded rod ends are standard — not upgrades.

ANSI, NFPA, JIC Interchange

Dimensionally interchangeable with ANSI, NFPA, and JIC standard cylinders, so the A Series fits existing envelope drawings and mounting hardware.

Aluminum or Steel Tube

Aluminum tube is standard for weight savings; steel tube is available where impact resistance or heavier duty cycles demand it.

Lubed for Life

Factory-lubricated and sealed for the life of the cylinder — no relubrication schedule to manage in the field.

Studded Rod Ends

Rod ends are studded with 4 wrench flats for a secure, serviceable connection to the load without a separate coupling.

Hard Chrome Plated Rods

Piston rods are hard chrome plated and case hardened for wear resistance and long service life under heavy load.

Ideal for Demanding Duty

Rated at 250 psi standard, with higher pressures available as custom — built for industrial applications that don’t get a second chance.

Choosing Your Tube Material

Both tube options run the same lubed-for-life seals, studded rod ends, and hard chrome plated rod on every A Series cylinder. The choice comes down to weight, cost, and how much abuse the installation is likely to take.

A Series · Tube Options

STANDARD

Aluminum Tube

Standard on every cataloged A Series cylinder. Lighter weight reduces load on mounting structures and simplifies handling during installation and maintenance, without giving up the 250 psi standard rating.

Lightweight Standard Rating General Duty

AVAILABLE

Steel Tube

Specified when the application calls for greater impact and abrasion resistance — high-cycle, high-shock, or rugged outdoor duty where an aluminum tube would wear faster than the rest of the cylinder.

Impact Resistant High-Cycle Duty Rugged Environments

A Series Specifications at a Glance

These figures cover the cataloged A Series line. Contact the factory to confirm bore, mounting style, and pressure rating outside the cataloged range.

Specification	Standard	Custom / Available	Notes
Bore Range	1-1/8″ thru 14″	Up to 48″	Cataloged standards; custom bores engineered per application
Pressure Rating	250 psi	Higher as custom	Confirm rating for non-standard bore/rod combinations
Mounting Styles	20 cataloged	Specials available	ANSI/NFPA/JIC interchangeable dimensions
Tube Material	Aluminum	Steel available	See tube material comparison above
Rod Finish	Hard chrome plated, case hardened	—	Studded rod ends with 4 wrench flats
Lubrication	Lubed for life	—	No field relubrication required

Note: Bore, stroke, mounting style, and pressure rating interact — confirm your full specification with the factory or your distributor before finalizing an order, especially for custom bores above 14″ or pressures above 250 psi.

Want Help Designing the Cylinder You Need?

The all-in-one checklist to get you started off on the right foot — and stay there. Have these ready before you contact the factory or request a quote.

Bore Size1-1/8″ thru 14″ cataloged, up to 48″ custom
Stroke LengthThe full travel distance your application requires
Mounting StyleChoose from 20 cataloged mounts or specify a special
Rod End StyleStudded as standard, or specify to match your linkage
Tube MaterialAluminum standard, steel available for demanding duty
Operating Pressure250 psi standard; note if your application runs higher
Cushioning & SealsSpecify cushions and seal compounds for your environment
Port Location & SizeConfirm port style and placement for your plumbing
